FARO® Vantage Laser Trackers

Fast, accurate measurements for large-scale applications

Measuring large parts, molds, assemblies and machines used to be a challenging, time-consuming process and often had to be performed in a special inspection area. Portable FARO Vantage Laser Trackers make on-site measurement easy and fast, reducing inspection cycle times by up to 75%. They measure 3D coordinates by tracking a target that the user moves from one point to another on the object being measured. In seconds, these measurements can be compared against nominal CAD data so teams can either make informed adjustments or move forward with confidence.

New to the VantageS6 Max and VantageE6 Max family of Laser Trackers is more accurate 6DoF probing, which helps speed up inspections and reduce the number of device moves. With the higher accuracy of the Vantage Max, users can probe more points beyond the line of sight and without tooling changes, resulting in a productivity improvement of 20% compared to lower accuracy probes.

Download 6DoF (Vantage S6/E6 Max) tech sheet
 Download 3DoF (Vantage S/E) tech sheet

Business Value of Vantage Laser Trackers

Improve Quality

Complex 3D inspections and automatic reports help users pinpoint defects, while high-accuracy alignment of machinery and robotic systems improves manufacturing quality.

Enhance Yield

Faster troubleshooting and root-cause analysis help increase overall yield.

Accelerate Revenue Generation

Installs with production equipment and brings products to market faster.

Increase Throughput

Higher production rates and reduced downtime for verification mean greater throughput.
Vantage Max now has more accurate 6DoF probing, which helps speed up inspections and reduce the number of device moves.

Vantage Laser Trackers By Performance Level

VantageS6 Max Laser Tracker

Highest Level of 3DoF and 6DoF Performance

This top-performing laser tracker offers a measurement range of up to 80m with a spherically mounted retroreflector (SMR) and has six degrees of freedom (6DoF) probing capability for maximum inspection throughput.
VantageE6 Max Laser Tracker

Standard Level of 3DoF and 6DoF Performance

This laser tracker offers a measurement range of up to 35m with an SMR and has 6DoF probing capability for maximum inspection throughput.
VantageS Laser Tracker

Highest Level of 3DoF Performance

The VantageS offers a measurement range of up to 80m with an SMR for the largest volume applications
VantageE Laser Tracker

Standard Level of 3DoF Performance

The VantageE offers a measurement range of up to 35m with an SMR.

Features

ActiveSeekTM Technology

Follow a moving target, even behind obstructions, with the industry’s widest field of view.

6Probe

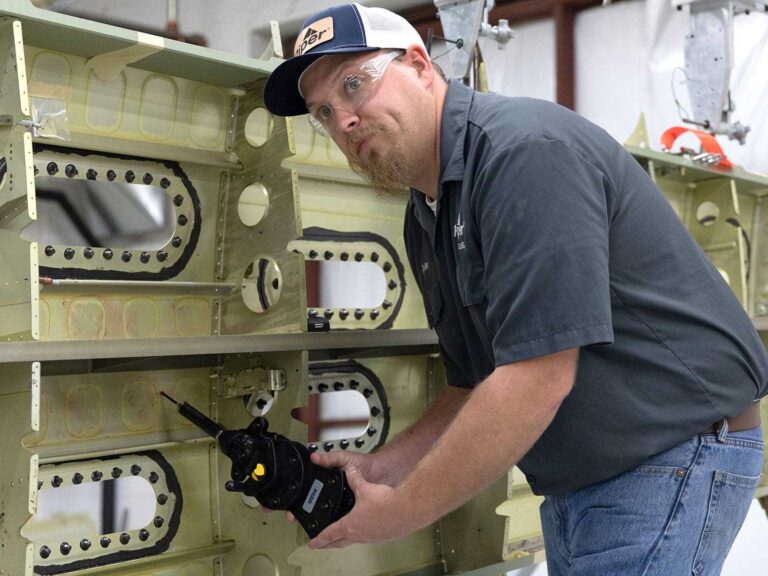

Use the handheld 6Probe with interchangeable kinematic styli for 6DoF measurement — the ability to measure hidden areas that are not in the direct line of sight.

Fast Data Acquisition

Capture data quickly for high-speed motion control and high-density scanning.

Integrated Absolute Distance Measurement System (iADM)

Ensure reliable distance and angle measurement with a single beam, Class 1 (eye-safe) laser system.





RemoteControlsTM Workflow

Control the laser tracker with a mobile device.

Exceptional Portability

Use in any environment and ship easily.

Proven Resistance

Know that Vantage Max and Vantage Laser Trackers can withstand shock, vibration, temperature cycle and humidity.

Hot-Swappable Battery

Swap batteries to operate continuously.

Integrated Wi-Fi

Operate without cables.

Versatile Mounting

Set up in nearly any configuration.

Integrated Weather Station

Ensure accuracy in any atmospheric condition.

FaroArm Features

Multiple Working Volumes

Meet the needs of different applications with working volumes of 2.0m, 2.5m, 3.0m, 3.5m and 4.0m for each of the performance models.

Kinematic Mount Flexibility

Enhance speed and accessibility with a kinematic mount that allows LLPs and probes to be interchanged seamlessly without the need for compensation after each exchange.

Internal Counterbalancing

Operate with a single hand to limit fatigue and avoid damaging the FaroArm when a joint is unable to hold the weight.

Ergonomic Design and Portable

Transport, set up and operate FaroArms with ease and comfort.

Exclusive FARO Quantum X 8-Axis Max Integration

Quickly measure all sides of a part without repositioning. Simply rotate the part on the 8-Axis Max rotary worktable.

Compliance

Meet rigorous ISO 10360 performance standards.

Temperature and Overload Sensors

Ensure continuous, optimum performance.

Powerful Software Solutions

Easily integrate FaroArms with FARO CAM2 or with most of the 3rd party inspection software.

Extended Battery Use Option

Operate without cables with the two, hot-swappable batteries.

High-speed Wireless Operation

Connect with included Bluetooth or Wi-Fi.

Rugged Design

Use FaroArms even in the most challenging measurement environments.

Family of Laser Line Probes (LLPs)

Achieve high-speed point cloud capture, high accuracy or a blend of both with LLPs, each hot swappable and purpose built.

Continuous Light Rectification (CLR) Technology

Scan dark, reflective or translucent surfaces with any LLP.

Smart Probe Capability

Quickly and easily change FARO probes without compensation.

3D Metrology Applications



Large-scale Production with Precision

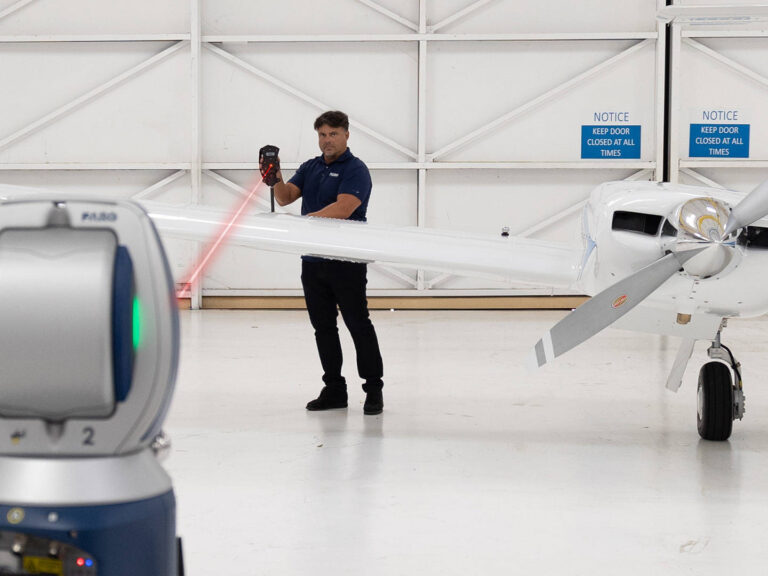

Ensure equipment alignment and adherence to the tightest tolerances when producing large parts, guiding assemblies, calibrating robots and manufacturing tooling, From aerospace to shipbuilding, leaders in the most innovative industries rely on Vantage Max Laser Trackers from FARO to produce the most advanced parts, assemblies and composites with speed and accuracy. See production, fabrication and assembly applications >



Enhanced Quality Control for Large Parts

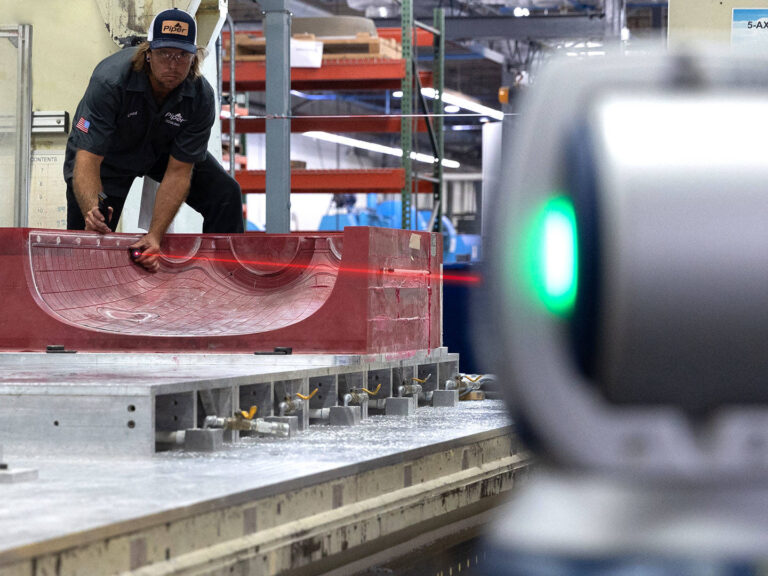

Inspect large parts and assemblies and composites up to 75% faster than with traditional measurement methods. Vantage Max Laser Trackers produce a digital record of actual versus nominal data to validate conformance to specification for complete quality assurance. See quality control and inspection applications >



Faster Engineering of Large-scale Parts and Assemblies

Accelerate the design process and your product improvement initiatives with Vantage Max Laser Trackers. Whether your work involves replacement parts or documenting as-built products and tooling, the Vantage Max trackers ensure accuracy during rapid prototyping and integrate well with reverse engineering software. See product design and engineering applications >
