FARO® Super 6DoF TrackArm

Measurement accuracy and flexibility for hard-to-reach places

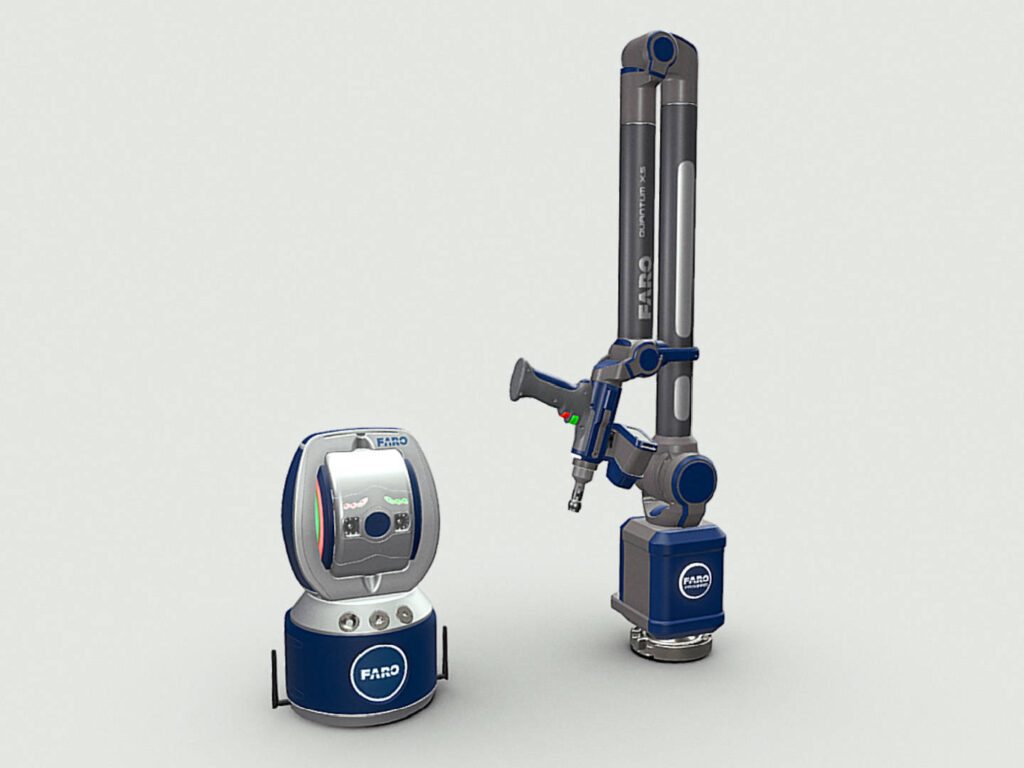

Capturing complete measurements seems impossible when you can’t even see all the sides of a complex object or machine. But the FARO Super 6DoF TrackArm gives you six degrees of freedom (6DoF) to measure all the hidden points and eliminate line-of-sight issues — even around corners. The Super 6DoF TrackArm combines the measurement accuracy of a FARO Vantage Laser Tracker with the flexibility of a Quantum X FaroArm® Series to measure anything, anywhere, at a fraction of the time and cost of other methods.

Business Value of the Super 6DoF TrackArm

Improve Quality

High-accuracy measurement and alignment improve manufacturing quality, while complex 3D inspections and automatic reports help users pinpoint defects.

Enhance Yield

Faster troubleshooting and root-cause analysis help increase overall yield.

Accelerate Revenue Generation

You’ll bring products to market faster and reduce rework and downtime.

Optimize Operations

Precision measurement reduces scrap, rework and inspection bottlenecks.

Keep Customers and End Users Happy

Delivering higher-quality products that can be used with confidence makes everyone happy and keeps customers loyal.

Make Informed Decisions

With the information at your team’s fingertips, they’ll be equipped to make smarter decisions faster and stay ahead of any problems.

Super 6DoF TrackArm Performance

Multifaceted Capabilities Without Compromise

 As the most versatile portable 3D measurement system, the Super 6DoF TrackArm is flexible, easy to use and delivers uncompromised accuracy for your most demanding 3D measurement needs.

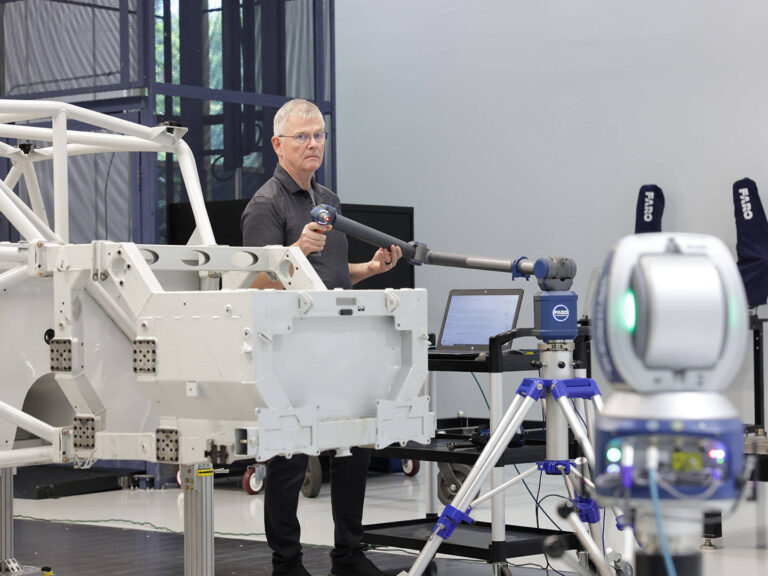

The Vantage Max Laser Tracker locates the FaroArm into a common coordinate system. Points from all measurement locations are combined and visualized in real time and compared to the nominal data.

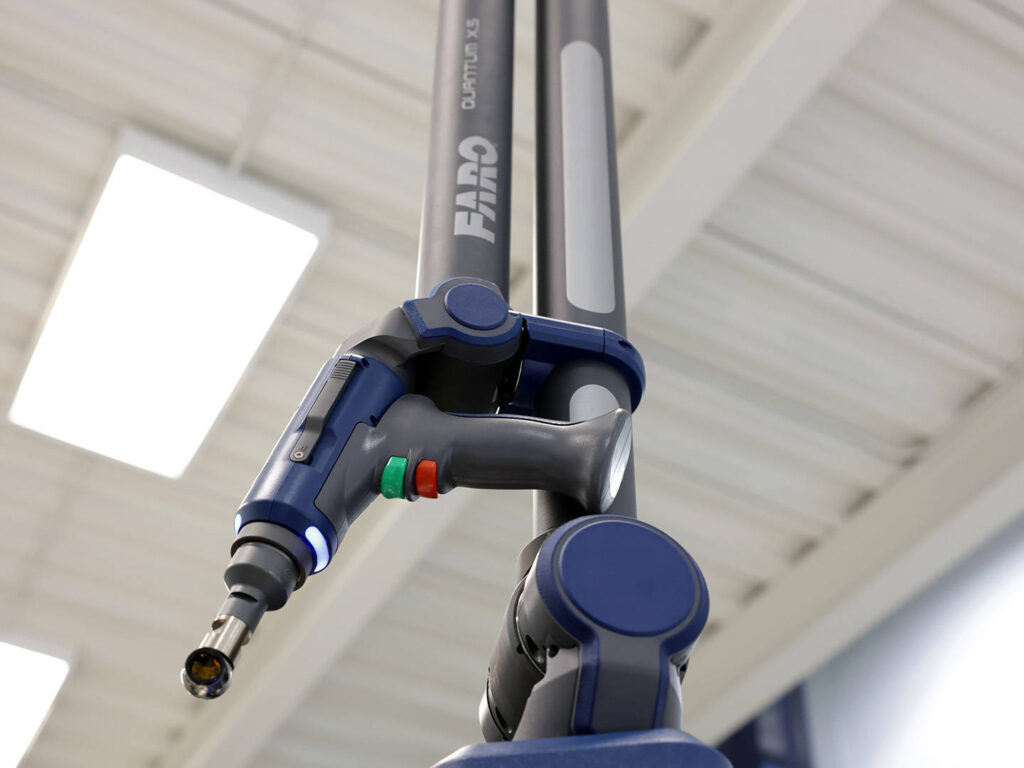

The FaroArm provides the flexibility to reach hidden points, even beyond the Vantage Max Laser Tracker’s line of sight, while still maintaining the measurement integrity of the entire system. One or more FaroArms can be repositioned anywhere within the laser measurement range while remaining in the same coordinate system.

FARO Super 6DoF TrackArm Features

Seamless Integration

Use multiple portable CMMs together as a large-volume measurement solution.

Six Degrees of Freedom

No hidden point restrictions due to line-of-sight obstructions.

Ultimate Portability

Operate without cables anywhere you need 3D measurement.

Device Flexibility

Improve resource efficiency by using the FARO Vantage Max Laser Tracker and FaroArm independently, as needed.

3D Metrology Applications

Inspecting What You Cannot See

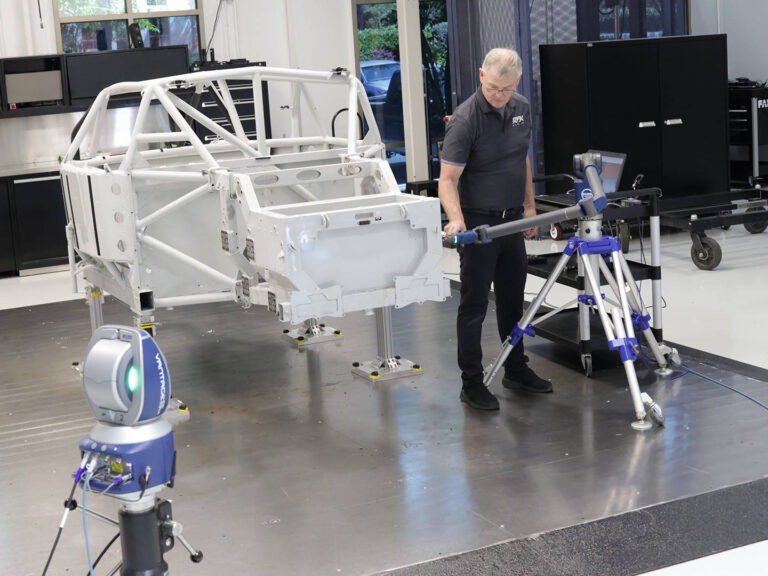

 Ensure accuracy and capture of details when inspecting large parts and assemblies with hidden parts or holes. The Super 6DoF TrackArm captures every measurement and produces a digital record of actual versus nominal data to validate conformance to specification. See quality control and inspection applications >

Precise Production of Components with Hard-to-reach Parts

From the automotive to the aerospace industry, the world’s top innovators use the Super 6DoF TrackArm to manufacture the most advanced parts, assemblies and composites with speed and accuracy. Ensure equipment alignment and adhere to tight tolerances, even when you can’t see all sides of the equipment or the product you’re manufacturing. See production, fabrication and assembly applications >

Flexible, Accurate Engineering of Parts with Hidden Areas

Use the Super 6DoF TrackArm to expedite the design process for large-scale parts with hidden or hard-to-reach areas. Whether you’re reverse-engineering a product or developing a replacement part or aftermarket component, the Super 6DoF TrackArm ensures accuracy and speed so you can get your product to market fast. See product design and engineering applications >
